    PART LIST
    FUSE & RELAY BOX
  • DIMENSIONS
    Length 412
    Width 135
    Height 148
    MATERIAL
    PA66
    Weight 1639g
NO ITEM SUB SIZE MATERIAL WEIGHT USAGE
1 Main Body 412 X 180 X 133(mm) PA66 303g 1
2 Fuse Relay Box 137 X 120 X 50(mm) PA66 47g 1
3 Top Cover 360 X 135 X 30(mm) PA66 272g 1
4 Lower Cover 149 X 130 X 49(mm) PA66 43g 1
5 Bus Bar - Copper Alloy - 2
6 IPDM 192 X 127 X 73(mm) - 974g 1
7 TPA Set - PBT - 1
8 Fuse Main Fuse - - - 8
S/B Fuse (Multi) 3
S/B Fuse (J) 2
S/B Fuse (ES) 3
Relay Relay-Power Mini 3
Relay-ISO Mini 1
Relay-ISO Micro 1
Relay-HORN 1
    PART LIST

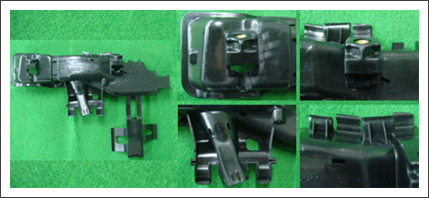

    PROTECTOR
  • DIMENSIONS
    Length 308
    Width 127
    Height 58
    MATERIAL
    Protector PA66
    Weight 132g
    Nut S 300PB
    Weight 3.5g
NO VALIDATION TEST METHOD REMARK
1 Temperature -30℃ ~ 85℃
2 Flamabilty 100㎜/min
3 Mounting Force (Panel) ≤ 3daN
4 Removal Force (Panel) ≥ 12daN
5 Pulling Out Force (Panel) ≥ 12daN
6 Resistance To Impacts 400g, 50㎝, 23℃
7 Vibration Resistance 25 ~ 500㎐
8 Resistance To Occasional Fluids 80±℃
9 Torque Behaviour >9.2N.m
10 Exceptional Torque Behaviour >12N.m
11 Hood Hinge 90°
    PART LIST

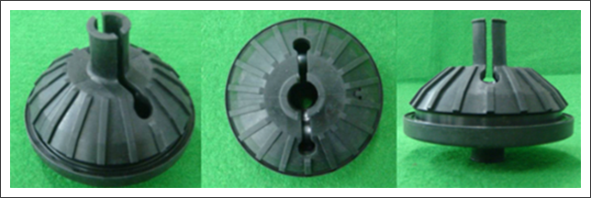

    DASH GROMMET
  • DIMENSIONS
    Length 106
    Width 106
    Height 89.5
    MATERIAL
    EPDM
    Weight 125g
NO VALIDATION TEST METHOD REMARK
1 Elongation 250%
2 Hardness Shore .A 50±4
3 Tensile Strength 10≤Rr>14M Pa
4 Tear Strength 20kN/m
5 Compression Set 30% (22Hour, 70±2℃)
6 Temperature -40℃ ~ 85℃
7 Ozone Resistance 2㎠/㎡, 48Hour
8 Low Temp, Brittleness -40℃
9 Discolaration 85℃
10 Flamabilty 100㎜/min
11 Insertion Force ≤ 6daN
12 Removal Force ≥ 12daN
13 Pulling Out Force ≥ 12daN
14 Water Seal Performance 0%
15 Resistance To Fluids 24Hour
16 Acoustic Test 500㎐ ~ 10,000㎐
    PART LIST

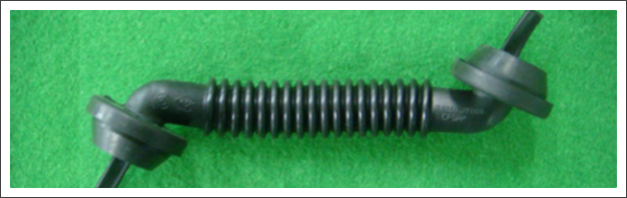

    DOOR GROMMET
  • DIMENSIONS
    Length 184
    Width 52
    Height 63
    MATERIAL
    EPDM
    Weight 50g
NO VALIDATION TEST METHOD REMARK
1 Elongation 250%
2 Hardness Shore .A 50±4
3 Tensile Strength 10≤Rr>14M Pa
4 Tear Strength 10kN/m
5 Compression Set 30% (22Hour, 70±2℃)
6 Temperature -40℃ ~ 85℃
7 Ozone Resistance 2㎠/㎡, 48Hour
8 Low Temp, Brittleness -40℃
9 Discolaration 85℃
10 Flamabilty 100㎜/min
11 Insertion Force ≤ 6daN
12 Removal Force ≥ 12daN
13 Pulling Out Force ≥ 12daN
14 Water Seal Performance 0%
15 Flex Test 75,000
